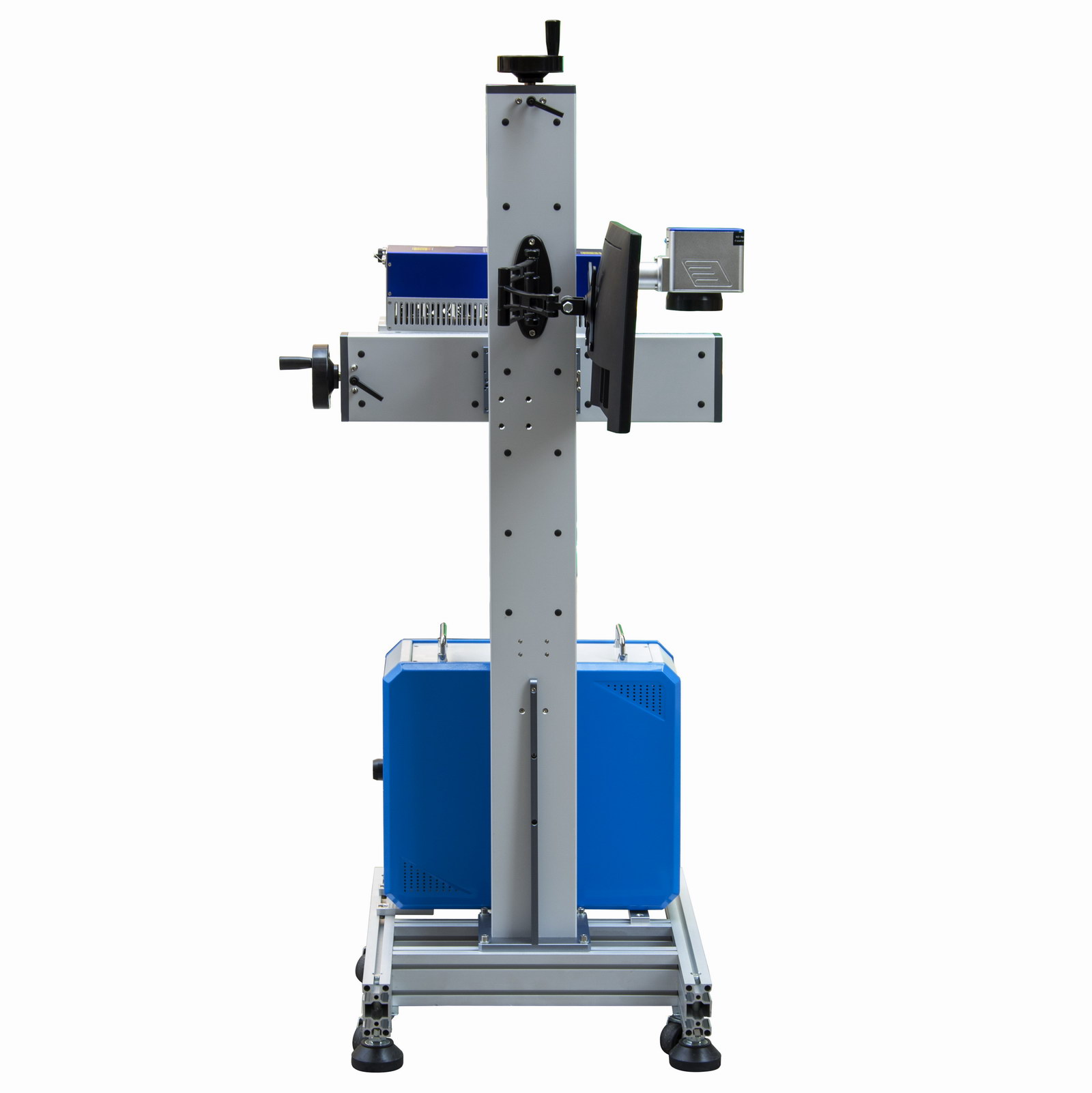

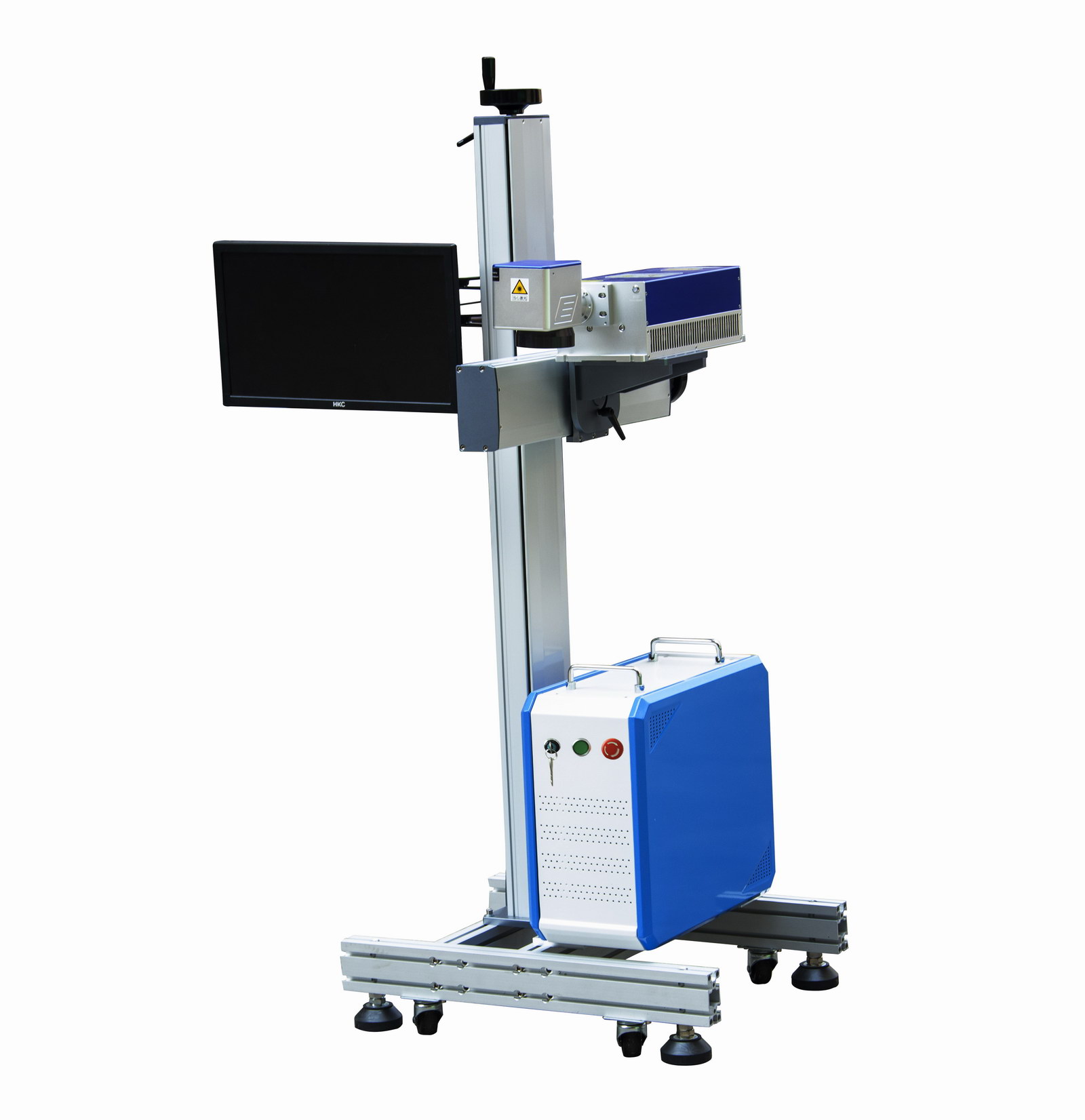

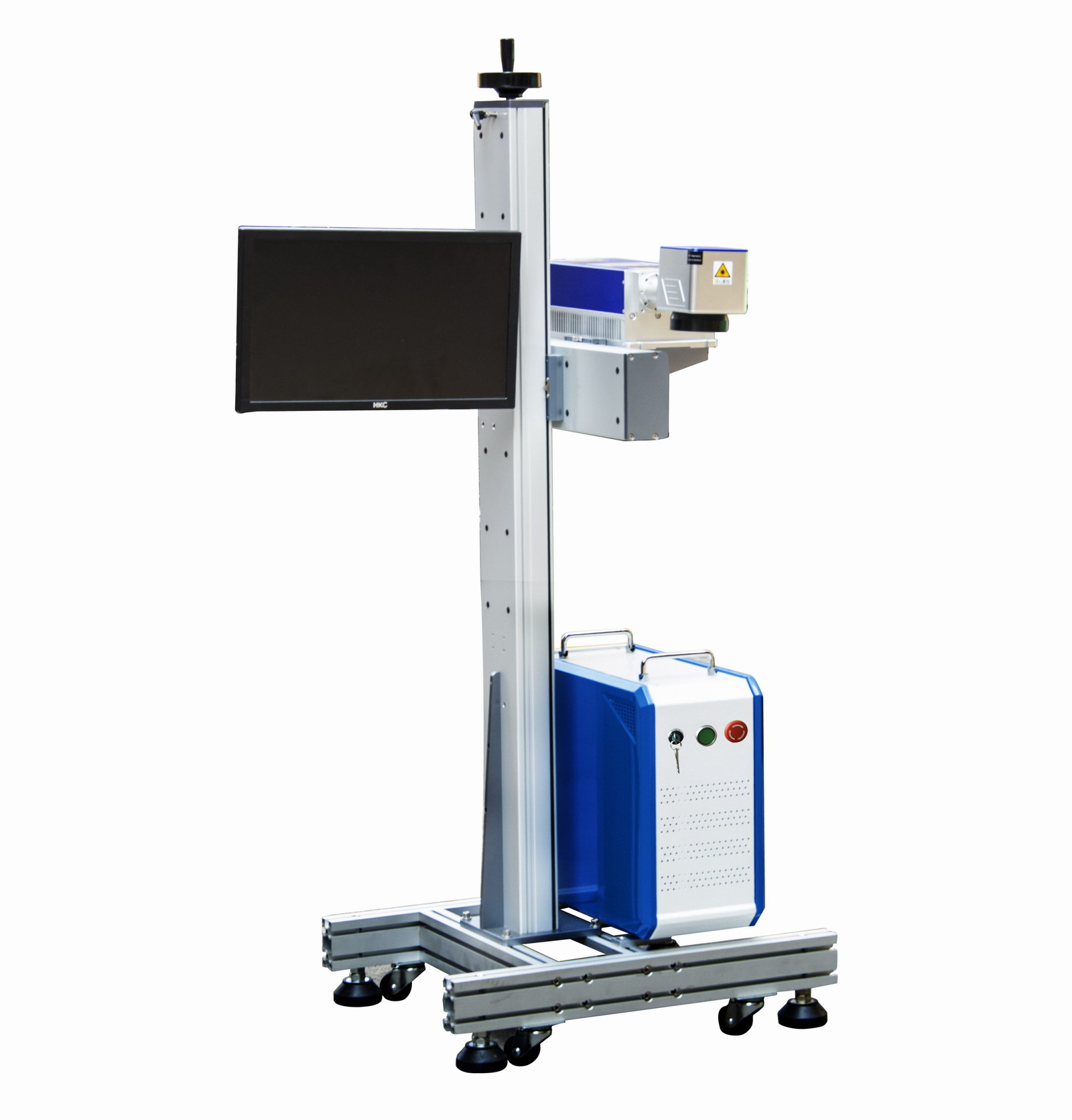

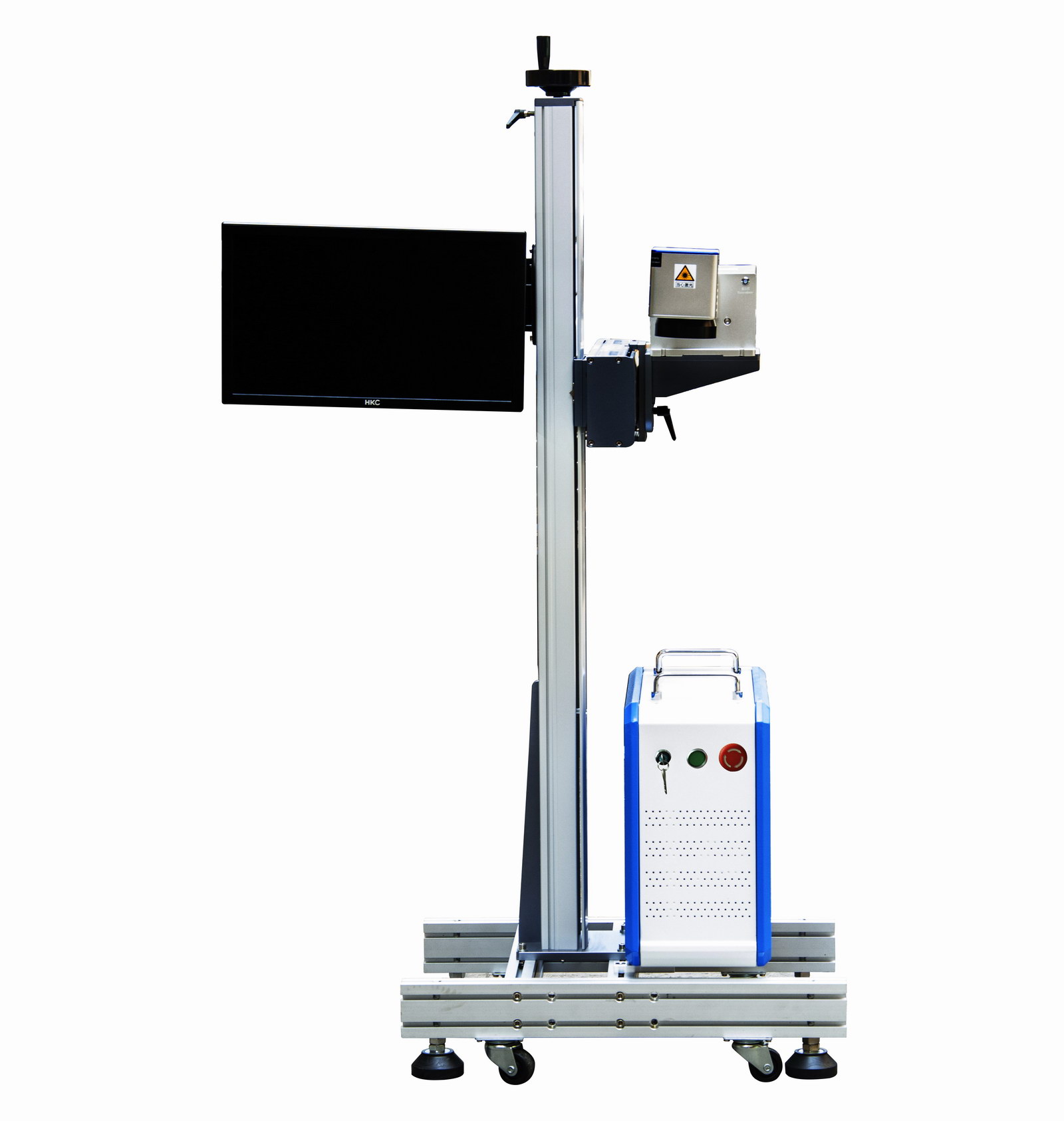

UV Laser Marking Machine Flying Type Water Cooled 10W 03A

Model
GL-M-N10
Brand
GainLaser
Applications
Laser Marking & Engraving
Description
Lots of stock for sell, Contact us to get price. We can sell one or more with wholesale price.
Reference #
1008
Price
GET A QUOTE
INQUIRE NOW
Technical Specifications
Model GL-M-N05 GL-M-N10
Laser Type DPSS Ultraviolet (UV)
Wavelength 355 nm
Average Power >5W@40kHz >10W@40kHz
Pulse Duration <18ns@30kHz <20ns@40kHz
Beam Quality M2<1.2
Frequency Range 1-150kHz
Spot Diameter 0.7+-0.1mm 0.8+-0.1mm
Marking Field / Lens Size 110*110mm, 160*160mm optional
Marking Speed <=7000mm/s
Cooling Air cooling / Water cooling
Electricity Demand 220V(110V)/50Hz(60Hz)
Operative Ambient Air Temp 7°-35°C / 45°-95°F
Dimensions L450*W450*H1400 MM
Weight 80KG
Warranty 1 Year
Catalog pdf Download
Catalogue - UV Laser Marking Machines & DPSS Lasers Catalogue - High Speed Gavanometer Scanners
